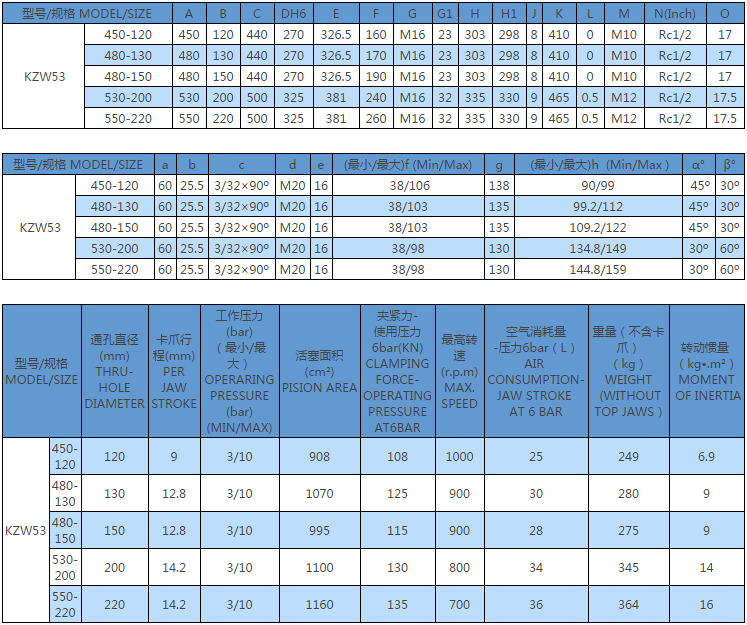

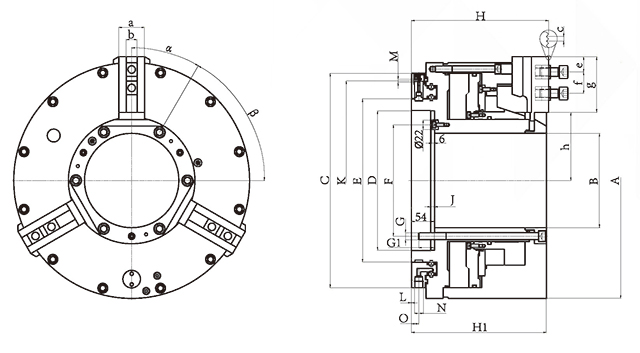

KZW53系列外圆配气前置气动卡盘

KZW53 SERIES FRONT-END PNEUMATIC POWER CHUCKS AIR FEED VIA THE OUTSIDE DIAMETER
发布时间:2015-05-15 19:26

气缸内置,驱动力通过斜楔机构传递。工作稳定可靠。在加工期间,卡盘通过双作用单向阀保持压力。只有在主轴停止时,压缩空气才能通过配气盘和配气圈供给。

Chuck with built-in cylinder, driving force is transmitted through the wedge mechanism. It is stable and reliable in work. Built in double non-return valves maintain the air pressure during machining. The compressed air feed via distributor ring and profile seals only when the spindle stops.

配气盘的两种安装定位方式:

Two ways of mounting the distributor ring:

1、通过固定轴承和防转支架,安装简便,但必须及时调整和润滑固定轴承以保证配气盘处于正确位置。

1、The distributor ring is positioned via fixed bearings and anti-rotation bracket,easy installation but the fixed bearings must be adjusted in time to keep the distributor ring in correct position.

2、使用配气盘支架,卡盘与配气盘不接触。虽然安装调整复杂点,但维护保养方便经济。

2、Though a bit difficult for chuck mounting and adjusting , it is easy maintenance and lower cost by means of the distributor ring bracket to avoid any contact with the power chuck.
