KZW53-D系列外圆配气大行程前置气动卡盘

KZW53-D SERIES FRONT-END PNEUMATIC POWER CHUCKS WITH EXTENDED JAW STROKE AND AIR FEED VIA THE OUTSIDE DIAMETER
发布时间:2015-05-15 18:17

气缸内置,驱动力通过斜楔机构传递。工作稳定可靠。在加工期间,卡盘通过双作用单向阀保持压力。只有在主轴停止时,压缩空气才能通过配气盘和配气圈供给。卡爪具有快移和夹紧行程

Chuck with built-in cylinder, driving force is transmitted through the wedge mechanism. It is stable and reliable in work. Built in double non-return valves maintain the air pressure during machining. The compressed air feed via distributor ring and profile seals only when the spindle stops.With rapid and clamping jaw stroke.

配气盘的两种安装定位方式:

Two ways of mounting the distributor ring:

1、通过固定轴承和防转支架,安装简便,但必须及时调整和润滑固定轴承以保证配气盘处于正确位置。

1.The distributor ring is positioned via fixed bearings and anti-rotation bracket,easy installation but the fixed bearings must be adjusted in time to keep the distributor ring in correct position.

2、使用配气盘支架,卡盘与配气盘不接触。虽然安装调整略微复杂,但维护保养方便经济。

2.Though a bit difficult for chuck mounting and adjusting , it is easy maintenance and lower cost by means of the distributor ring bracket to avoid any contact with the power chuck.

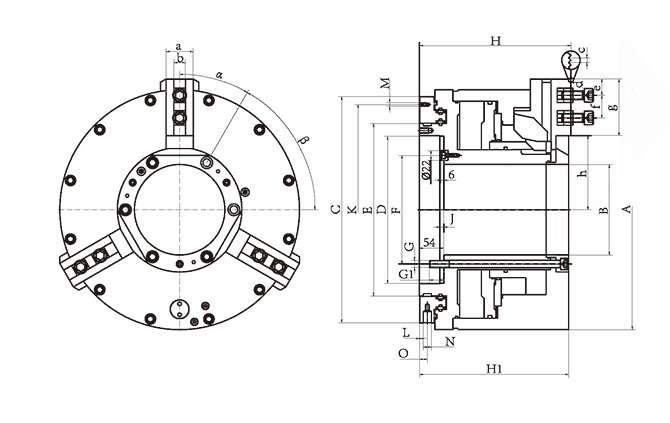

型号/规格 MODEL/SIZE A B C DH6 E F G G1 H H1 J K L M N(Inch) O
 KZW53-D 450D-120 450 120 440 270 326.5 160 M16 26 310 305 8 410 0 M10 Rc1/2 17
480D-130 480 130 440 270 326.5 170 M16 26 310 305 8 410 0 M10 Rc1/2 17
480D-150 480 150 440 270 326.5 190 M16 26 310 305 8 410 0 M10 Rc1/2 17
530D-200 530 200 500 325 381 240 M16 32 335 330 9 465 0.5 M12 Rc1/2 17.5
550D-220 550 220 500 325 381 260 M16 32 335 330 9 465 0.5 M12 Rc1/2 17.5



型号/规格      MODEL/SIZE a b    c d e (较小/较大)f (Min/Max) g  ( 较小/较大)h (Min/Max) α° β°
 KZW53-D 450D-120 60 25.5 3/32×90º M20 16  38/100 132 91/111  45º 30º
480D-130 60 25.5 3/32×90º M20 16 38/108 140 98/118 45º 30º
480D-150 60 25.5 3/32×90º M20 16 38/100 132 108/126 45º 30º
530D-200 60 25.5 3/32×90º M20 16 38/93 125 136.8/163.8 30º 60º
550D-220 60 25.5 3/32×90º M20 16 38/93 125 146.8/173.8 30º 60º



型号/规格 MODEL/SIZE 通孔直径 (mm) THRU-HOLE DIAMETER 卡爪行程 (mm) PER JAW
STROKE
工作压力(bar)
(较小/较大) OPERARING
PRESSURE
(bar)
(MIN/MAX)
活塞面积
(cm²)
PISION AREA
夹紧力-
使用压力
6bar(KN) CLAMPING
FORCE-OPERATING
PRESSURE  AT 6BAR
较高转速 (r.p.m) MAX. SPEED 空气消耗量
-压力6bar (L) AIR
CONSUMPTION
-JAW STROKE AT 6 BAR
重量
(不含卡爪) (kg) WEIGHT
 (WITHOUT
 TOP JAWS)
  转动惯量
(kg.•.m²) MOMENT
 OF INERTIA
KZW53-D 450D-120 120 13+7 3/10 908 136 1000 29 250 6.9
480D-130 130 13+7 3/10 1070 160 900 34 280 9
480D-150 150 13+7 3/10 995 149 900 32 280 9
530D-200 200 20+7 3/10 1100 165 800 41 352 14.2
550D-220 220 20+7 3/10 1160 174 700 43 371 16.5
